LONG BED CNC LATHES
LONG BED CNC LATHES

TD SERIES

Z2200-Z3200

LONG BED LATHES

Big does NOT mean slow. That's the phrase that best sums up our large TD Series Z2200-Z3200 lathe. With this series we offer an extremely rigid and robust lathe for machining longer parts. These are machines have beds of more than 2 or 3 metres between the chuck and tailstock for longer parts. All TD machines have integrated, powerful, high torque spindles, as opposed to more obsolete spindles with reduction boxes. In addition, there is an option for a double pneumatic cylinder (chucks on both ends of the headstock) with a 192 mm through bore. As in all our machines, the turret has a built in motor facilitating power driven tools : 12,000 rpm, 105 Nm and 13 kW. They are long bed lathes manufactured with first class components that provide great stability and machining power. If you need to machine shafts or huge parts, you will find the long bed lathe you are looking for in this product range.

TD SERIES Z2200-Z3200

BIG DOES NOT MEAN SLOW

TD Z3200

13 kW, 105 Nm, 12,000 rpm

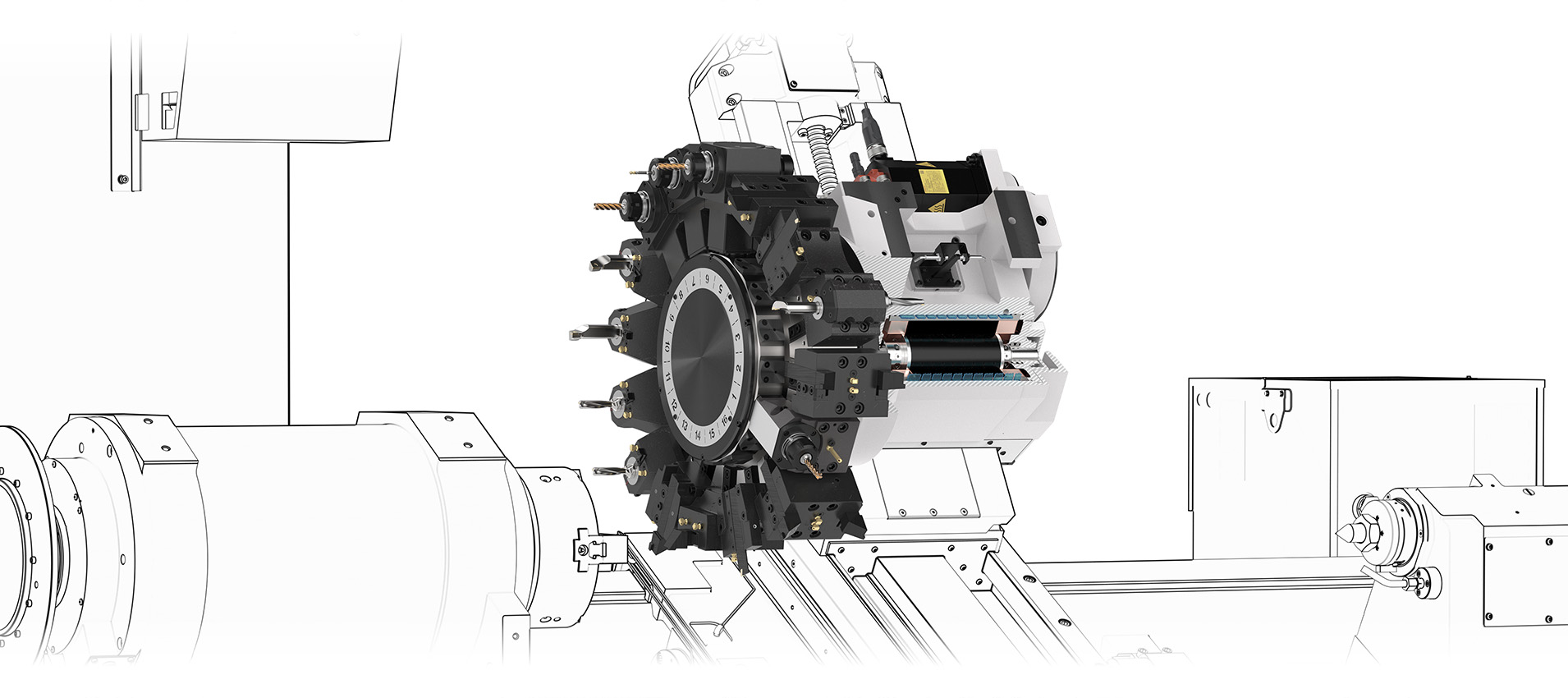

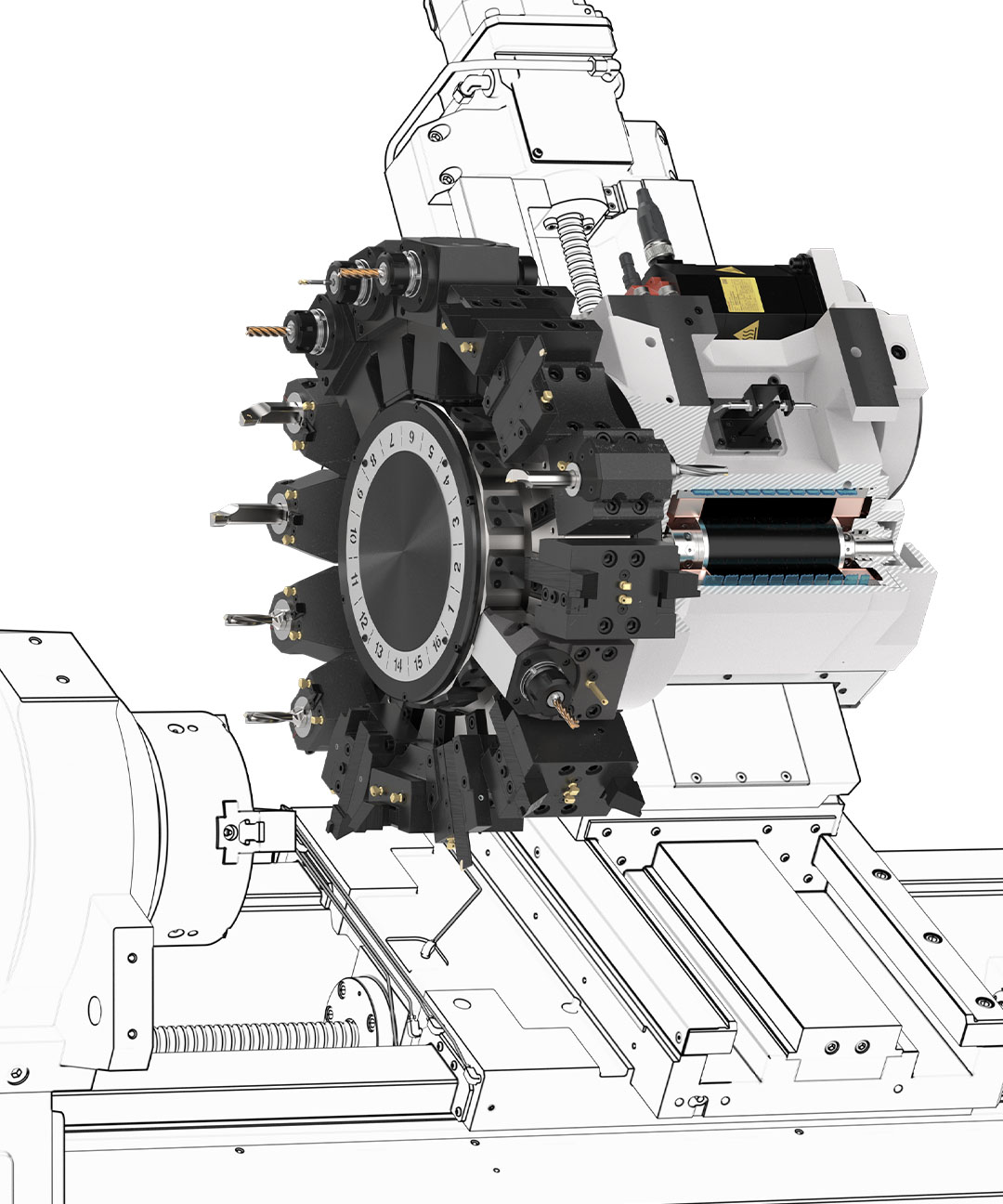

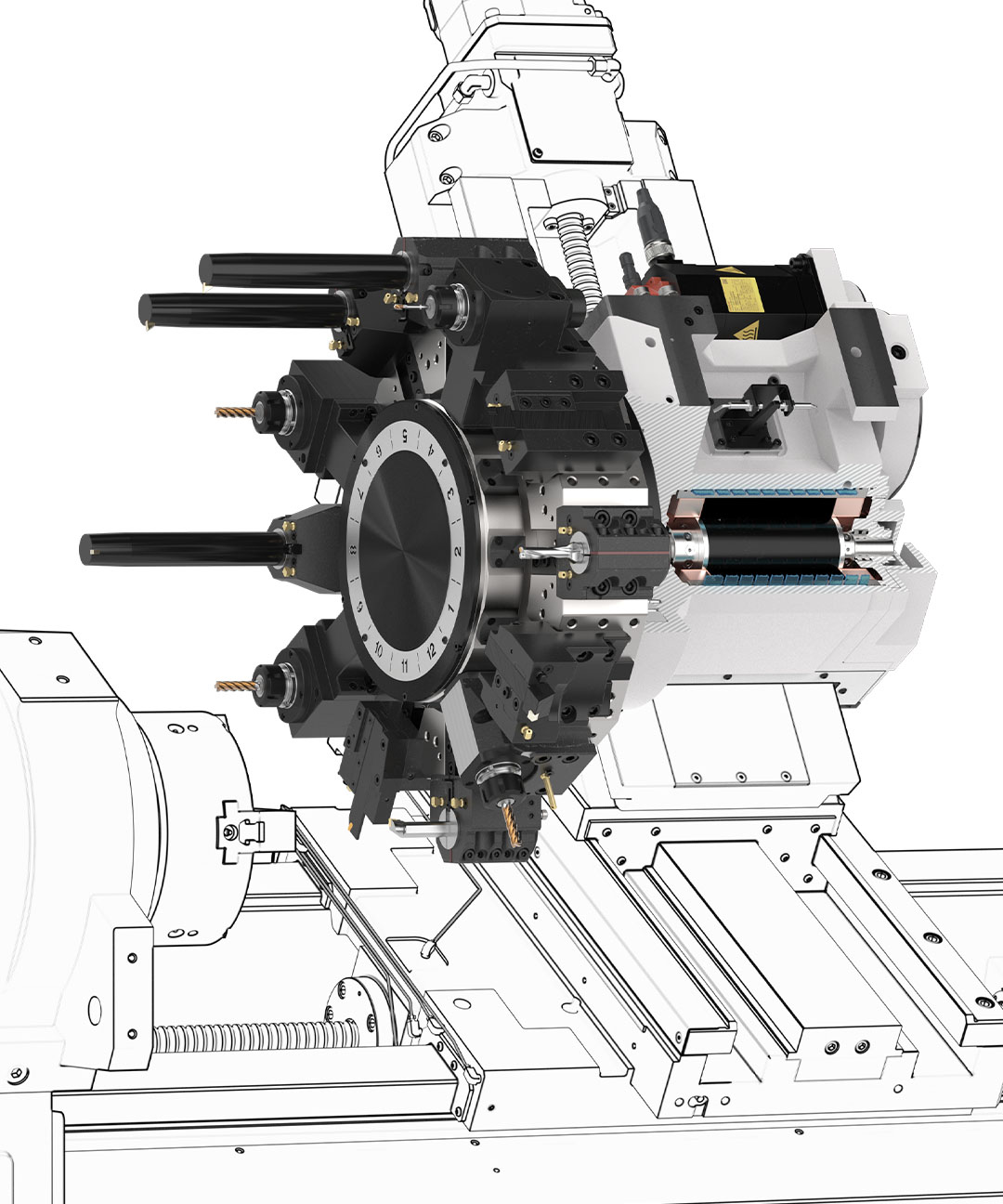

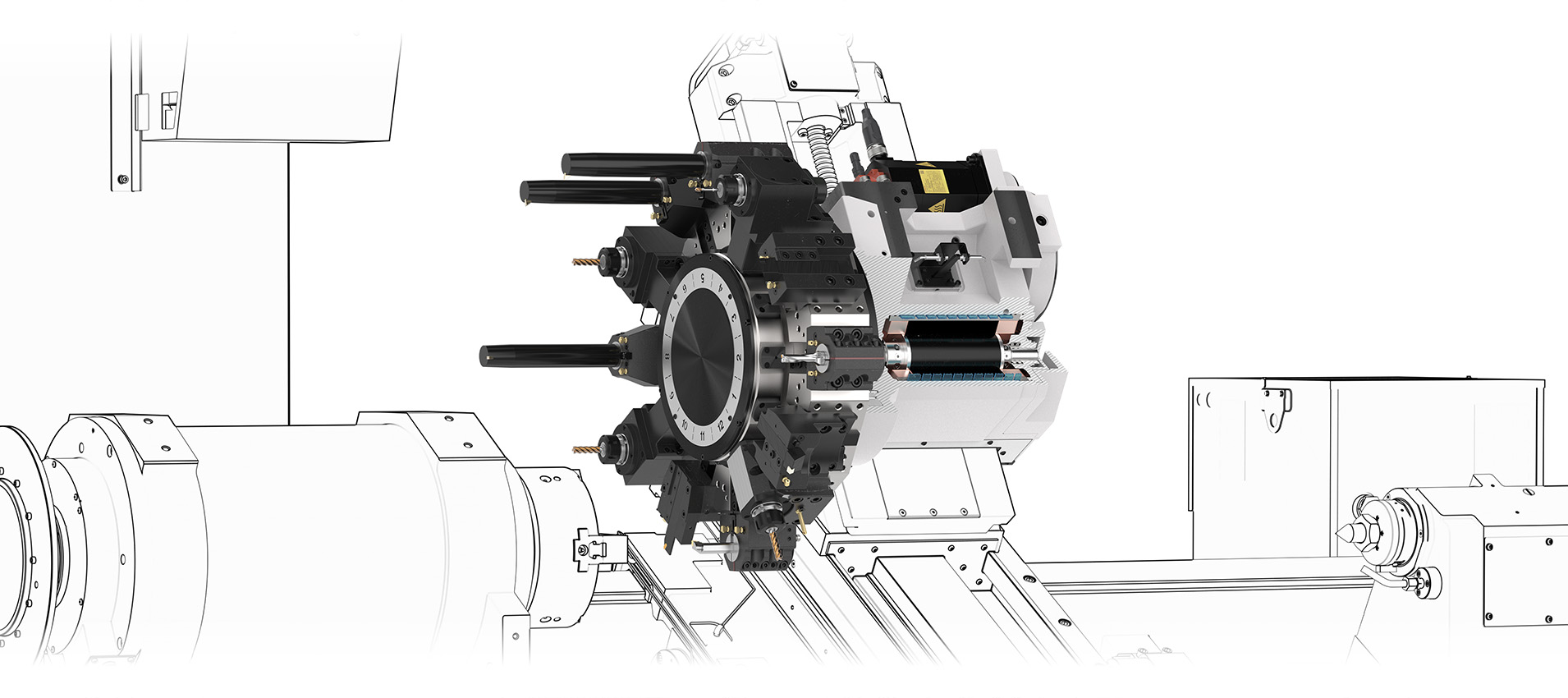

TURRET WITH A BUILT-IN MOTOR

This long bed lathe incorporates a robust oil-cooled turret whose large-diameter tool-holders reduce interference between tools and the chuck. The non-lift turret disk unclamps internally when indexing achieving an effective 0.2 second indexing time. It also remains completely sealed preventing the ingress of dirt.

GREAT RIGIDITY AND PRECISION

DOUBLE PNEUMATIC CHUCKS AVAILABLE AS AN OPTION

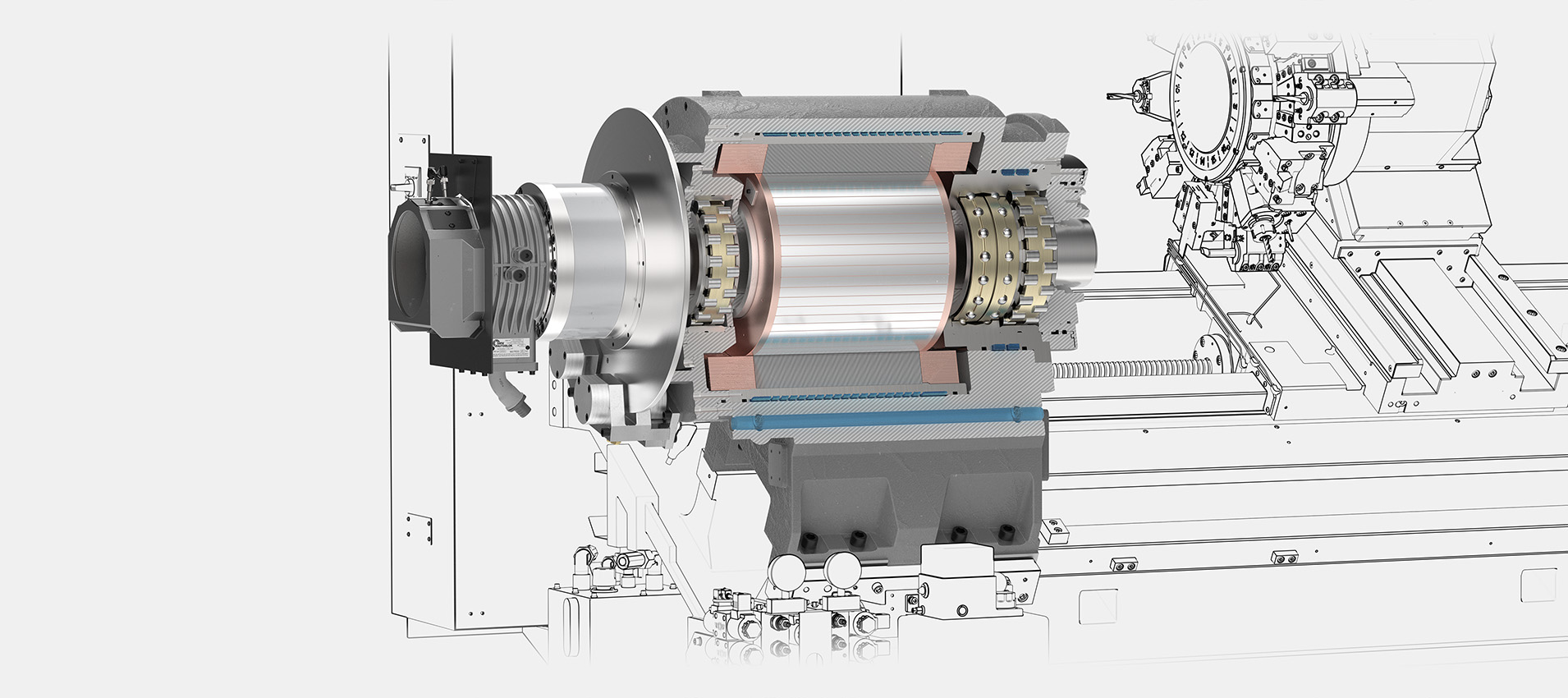

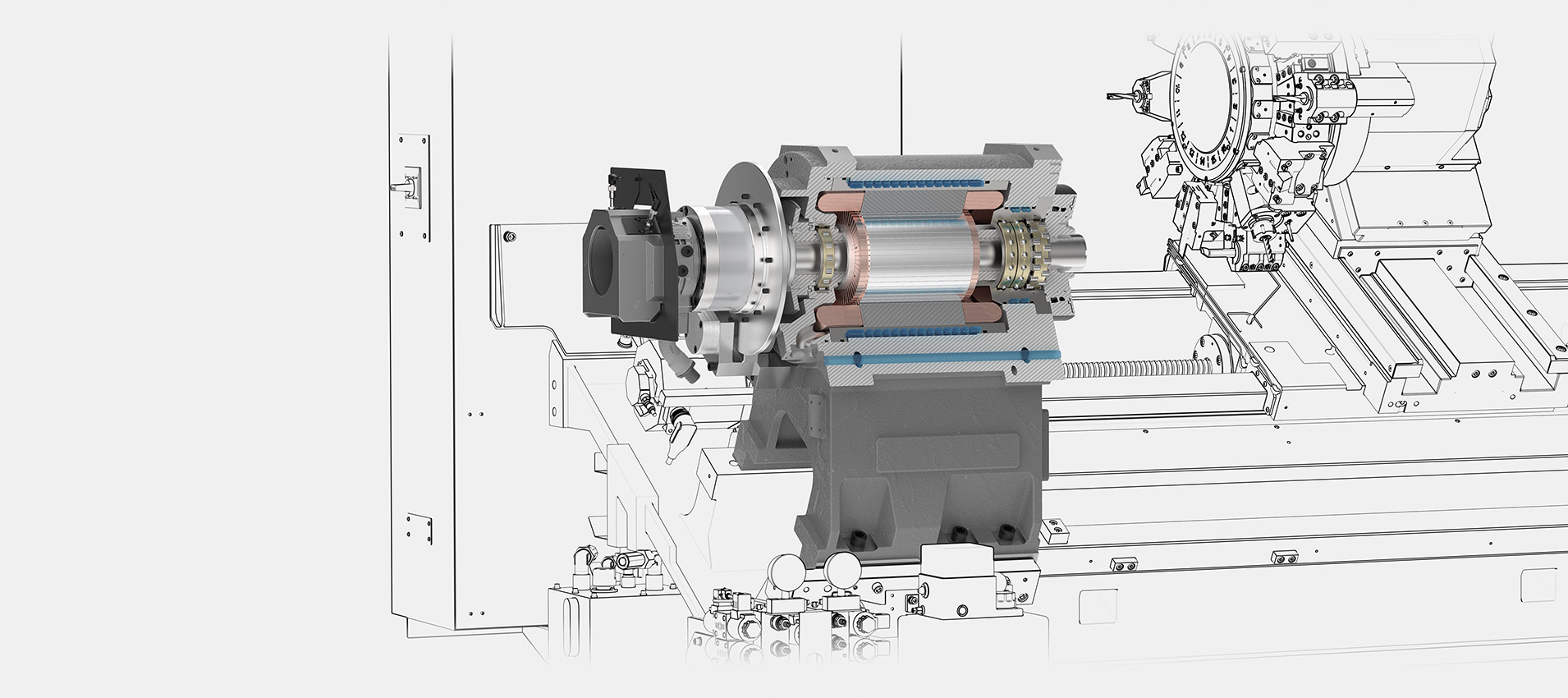

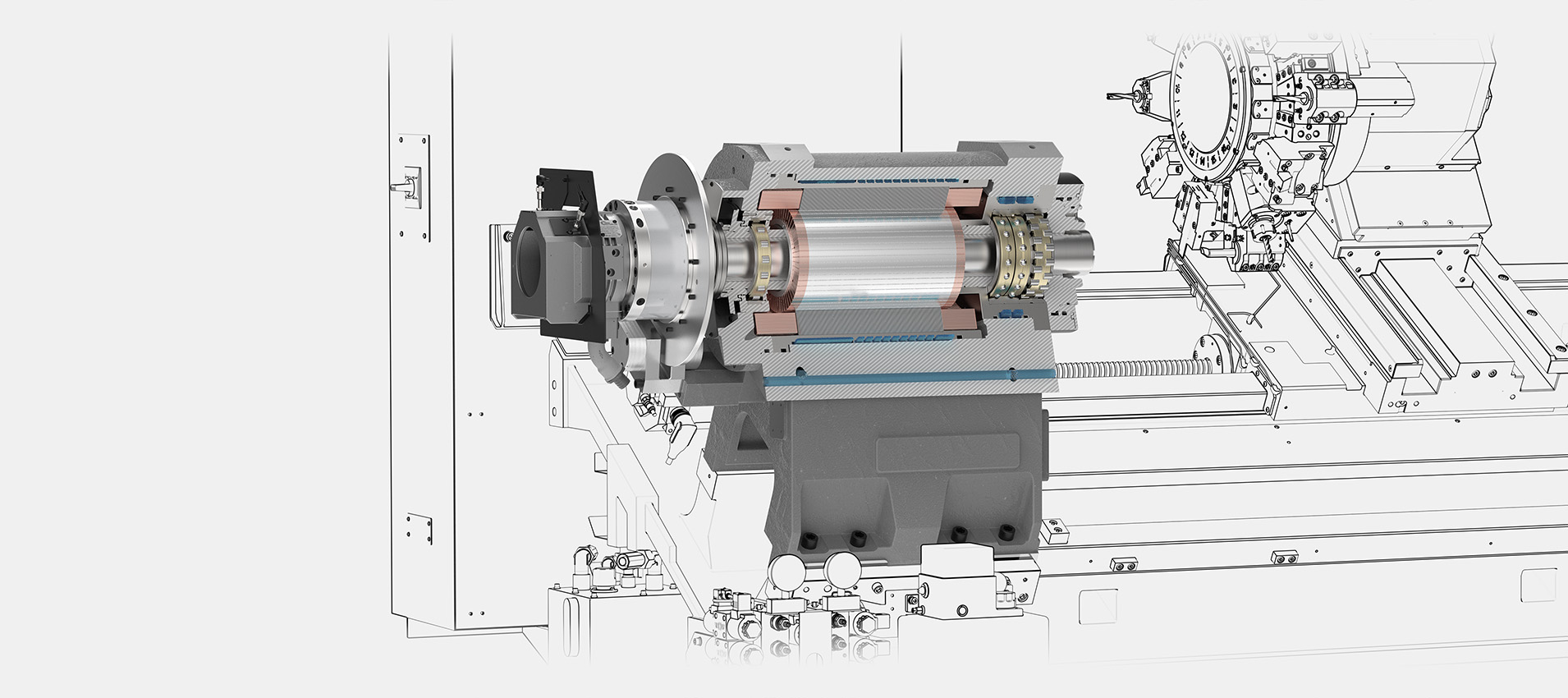

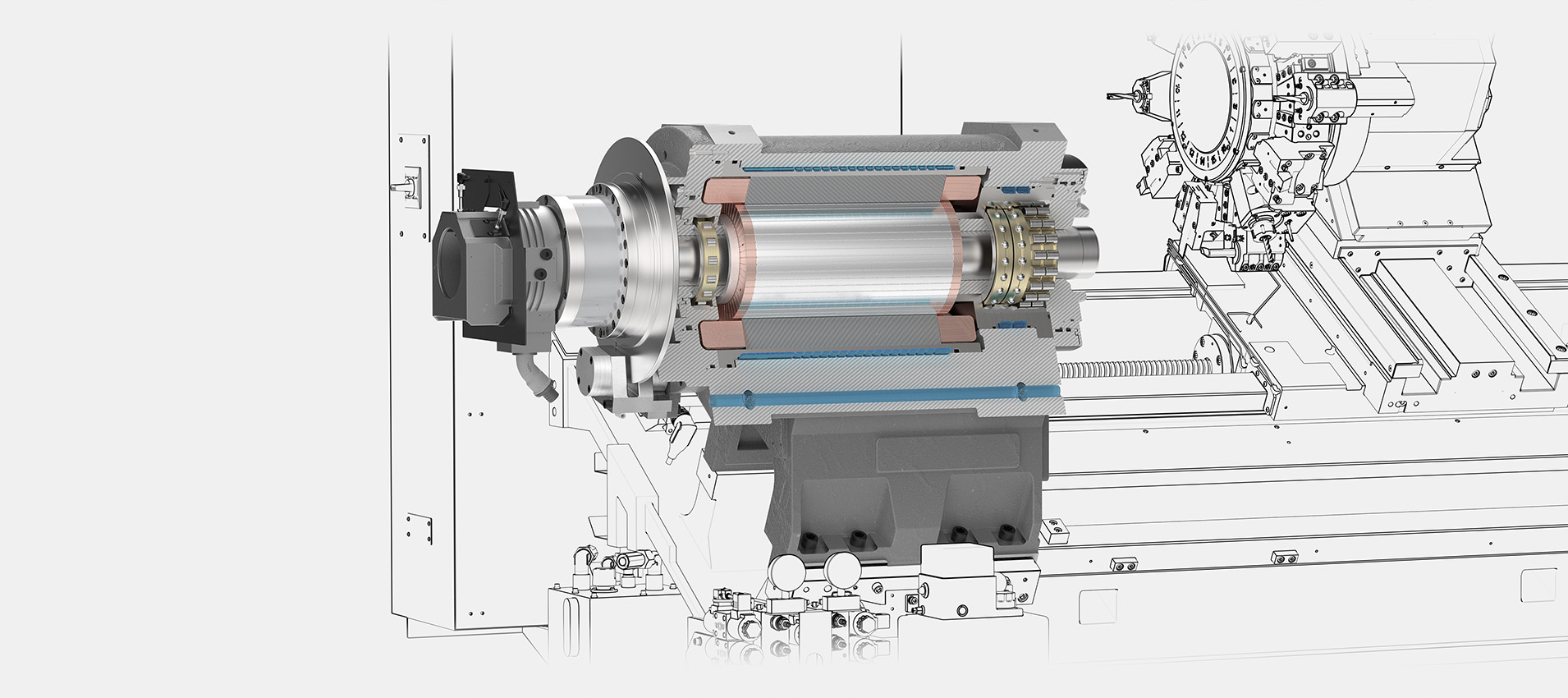

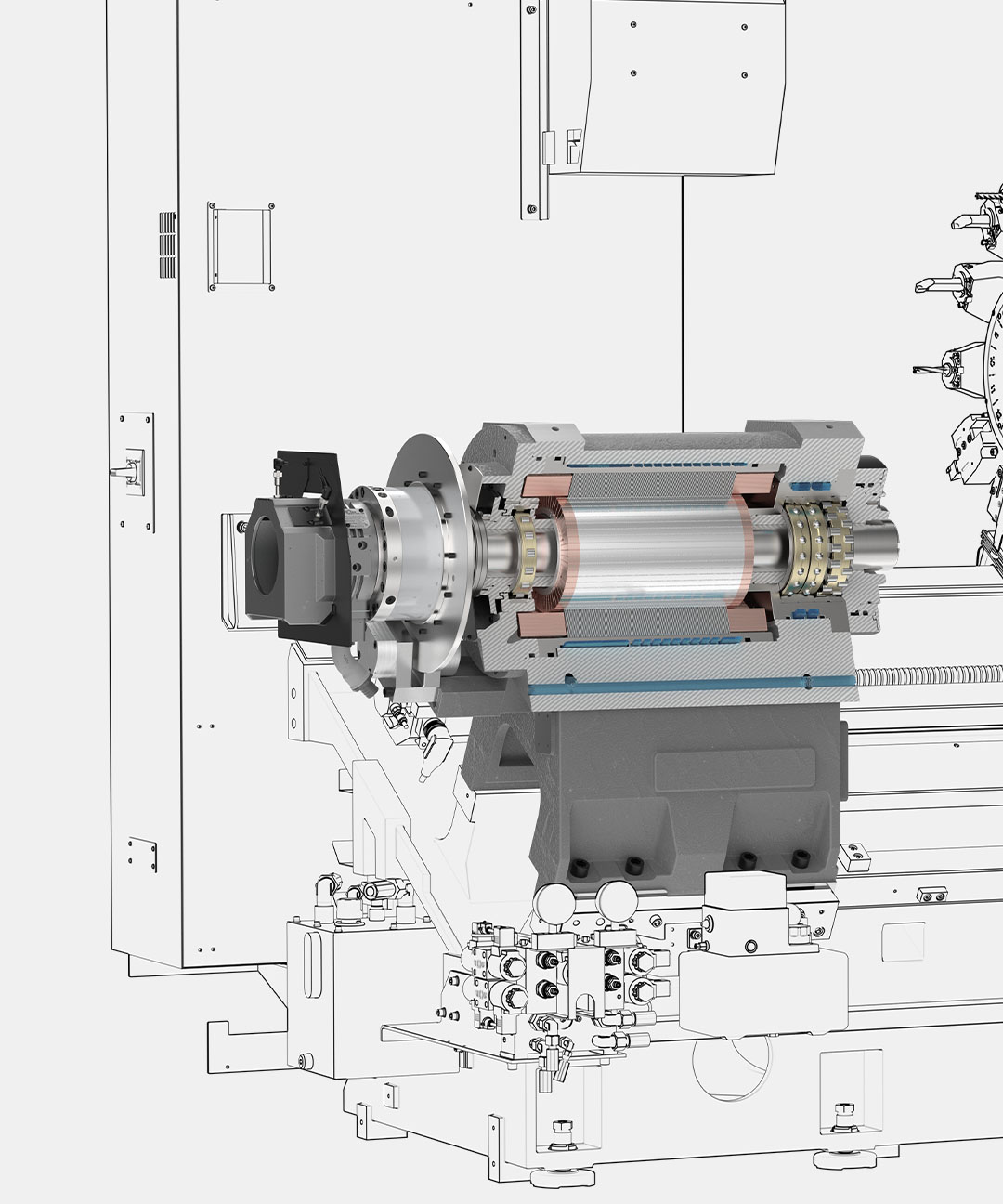

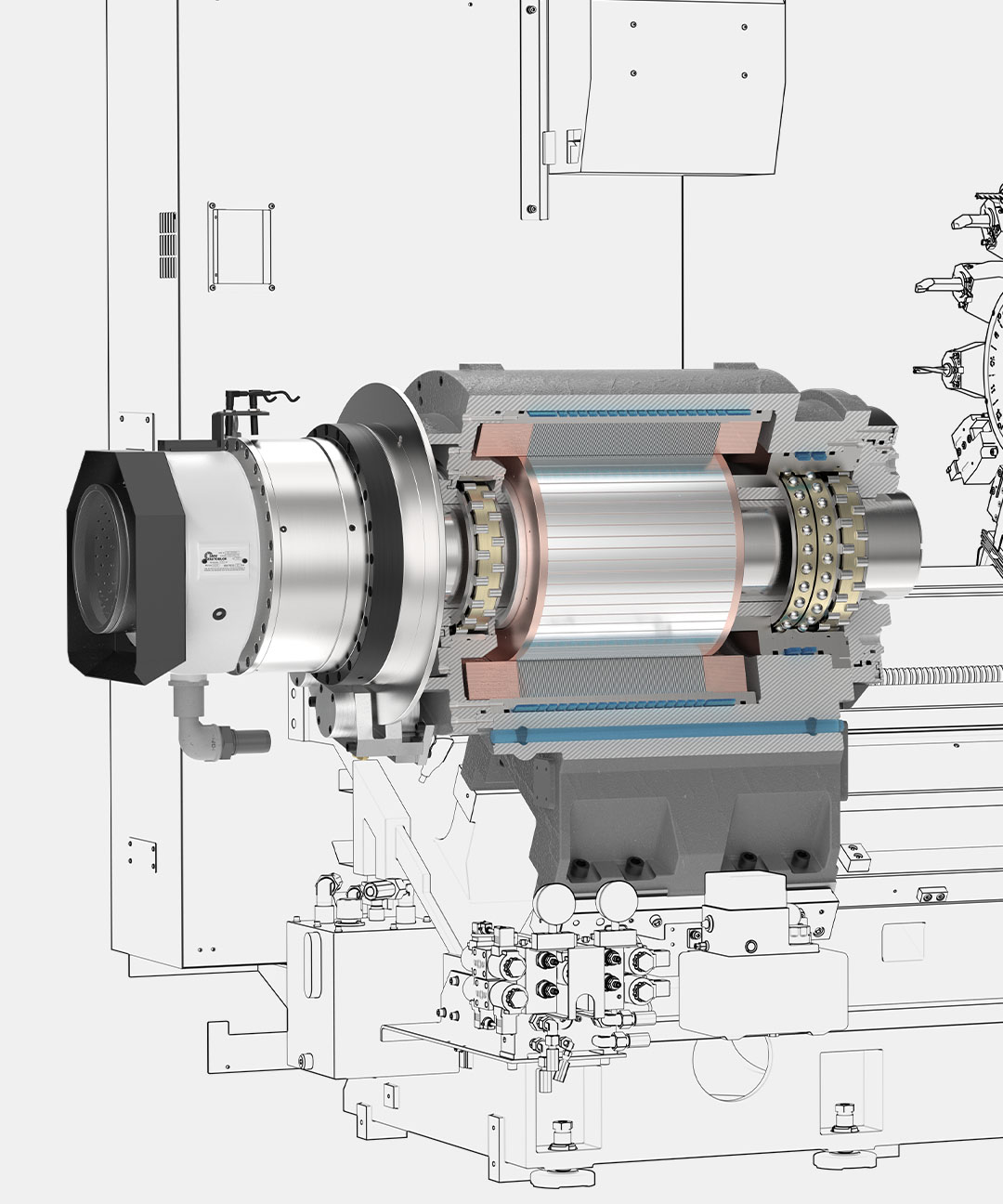

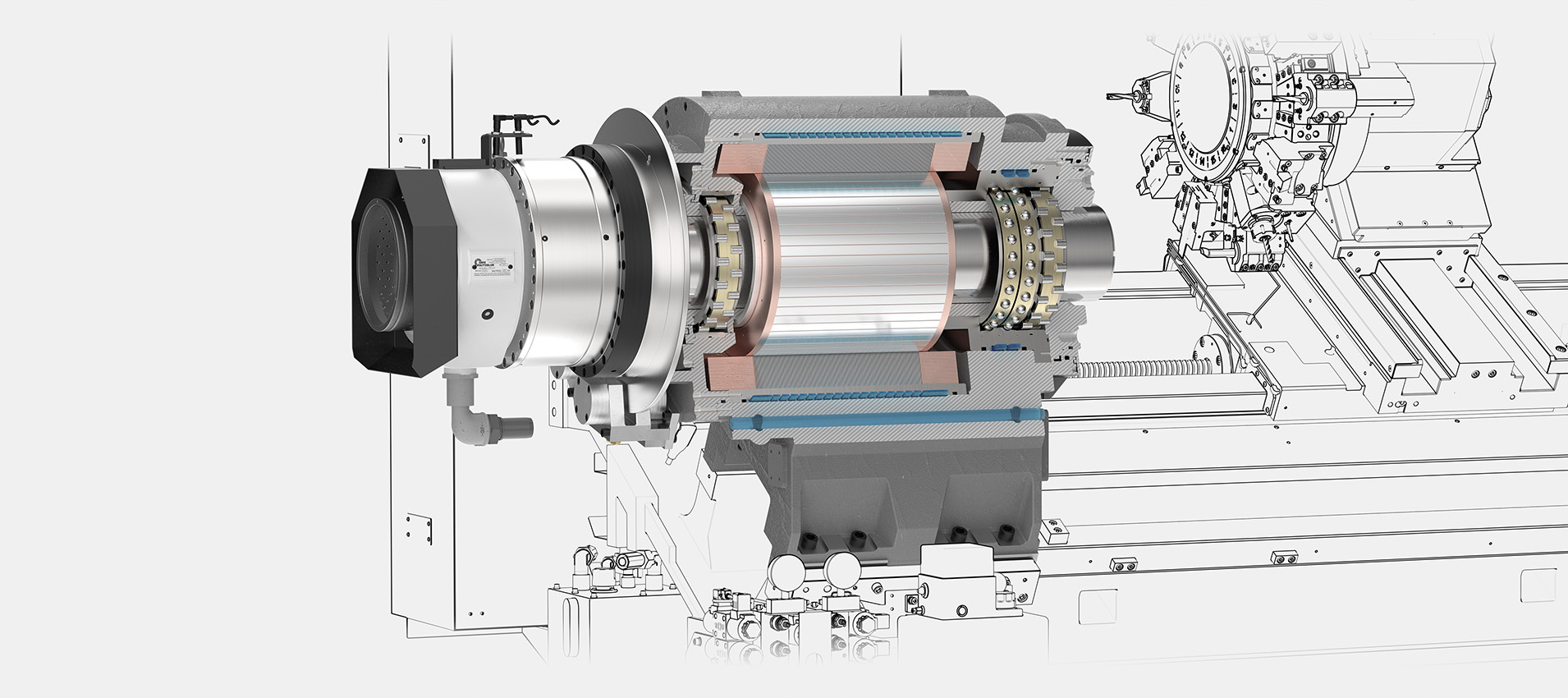

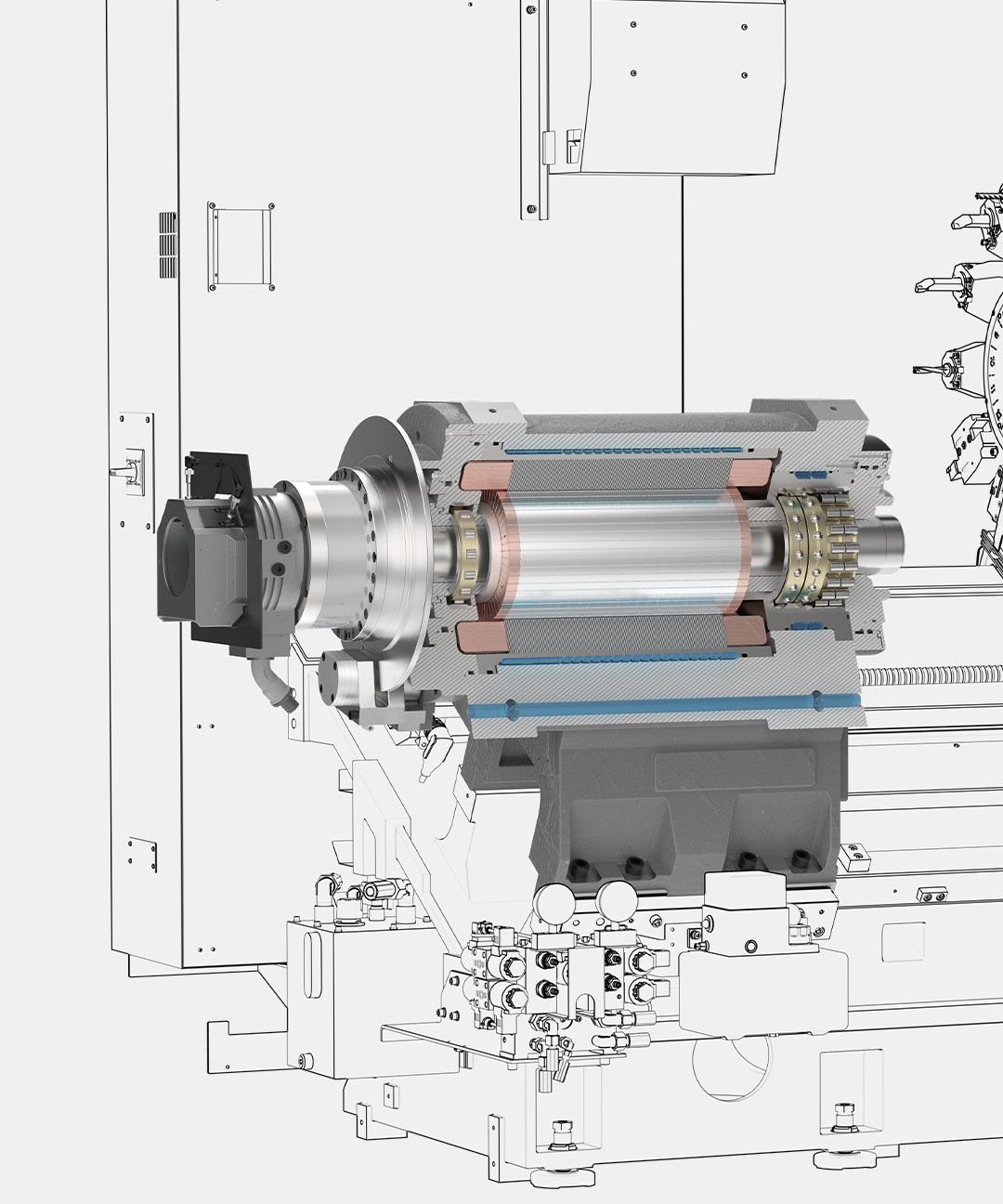

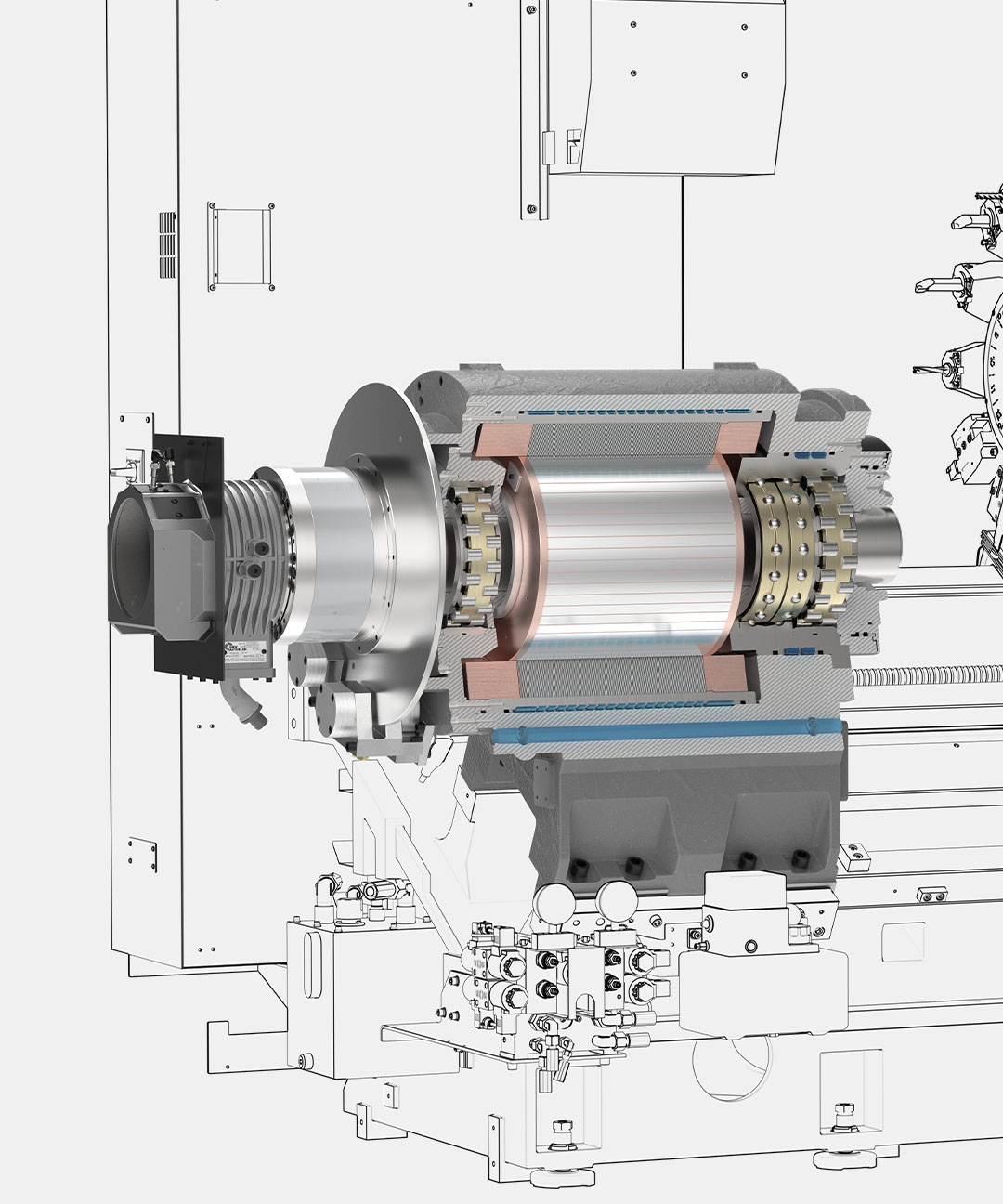

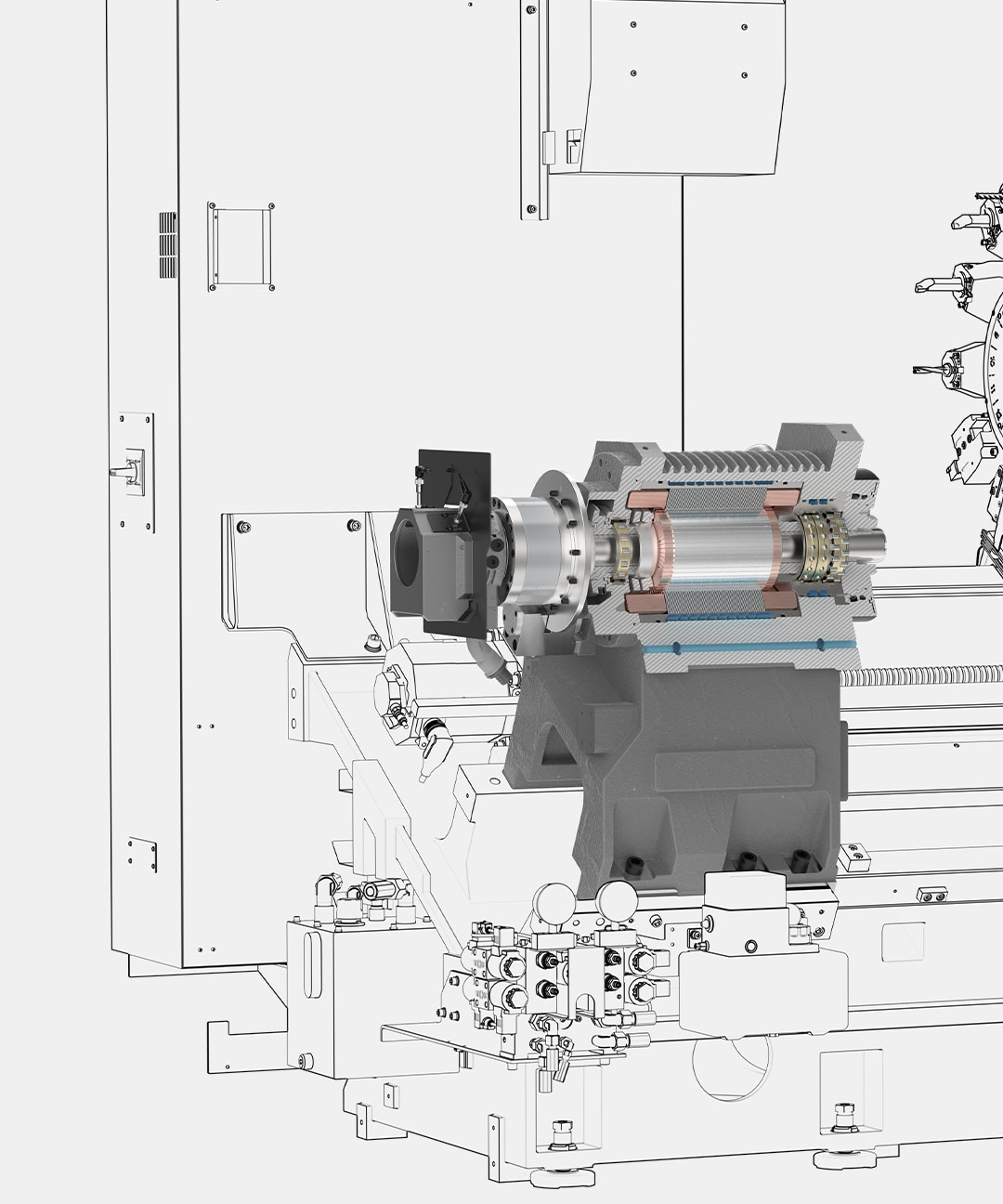

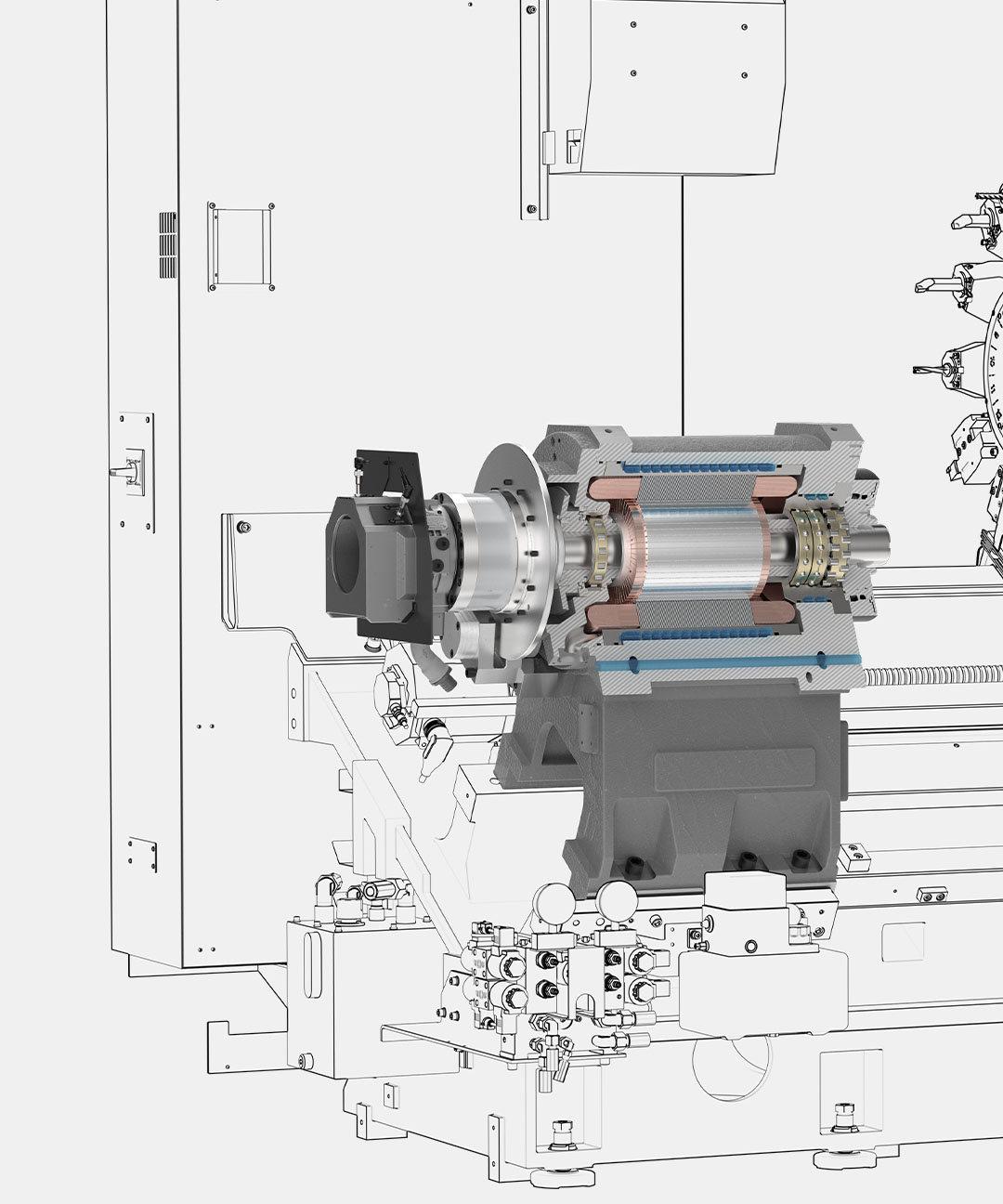

The integated spindles of this long bed lathe are oil cooled. They are integrated spindles and can incorporate double chucks, with internal through bores of up to 192 mm.

Accuracy and thermal stability

Laser compensation on all axes is a standard feature on all models in the TD series

TD Series Laser

Comparison of long bed lathes

What is the best long bed lathe for you?

Machining examples

Mecanizado piezas grandes
