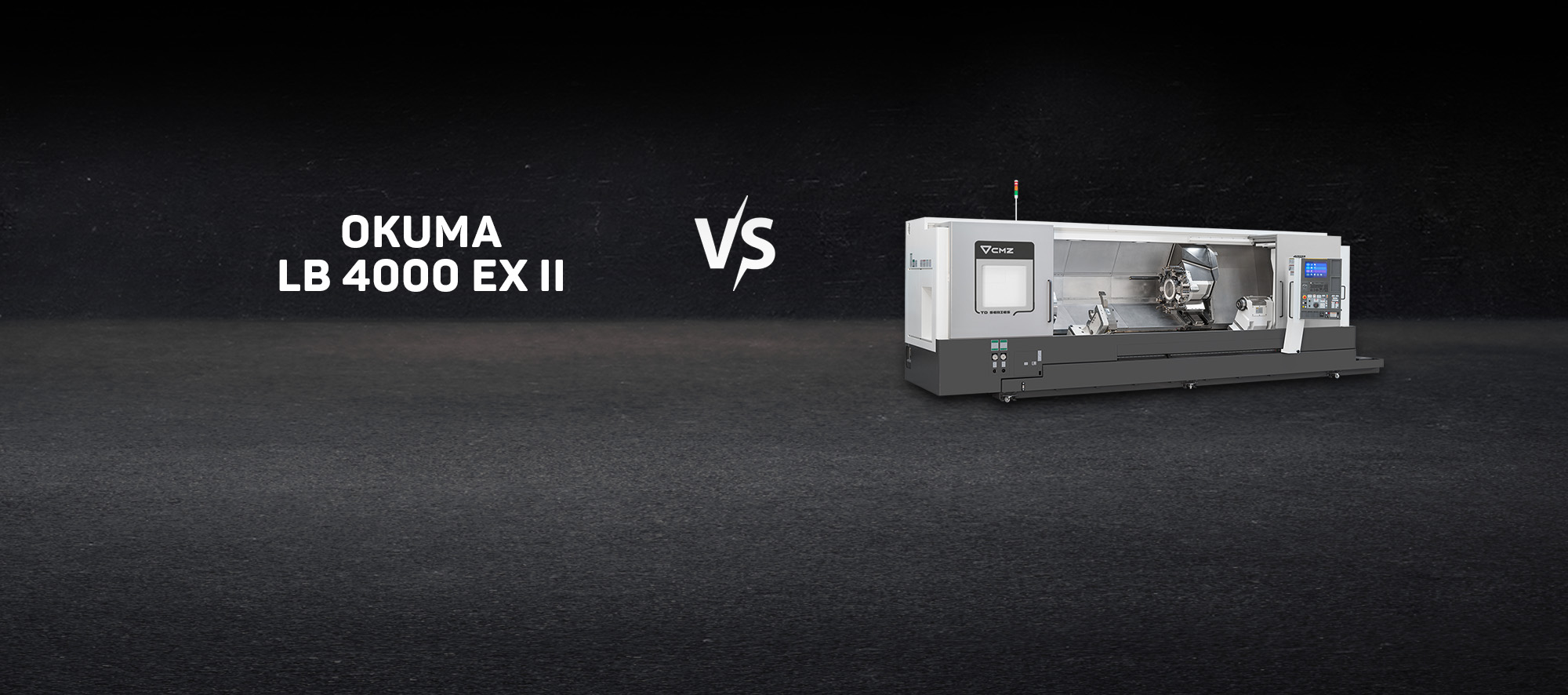

OKUMA LB4000 EX II VS. CMZ TD
TECHNICAL SPECIFICATION COMPARISON
-
LB 4000 EX II
Single turret CNC lathe - High precision CNC lathe and prismatic guides
- Bar capacity options: Ø91, Ø112 or Ø185
- X travel = 300 mm
- Z travel up to 2240 mm
- Fast feeds (m/min): X=25, Y=12.5, Z=30
- Spindle with integrated motor
- Spindle with Ø112 bar capacity: 1,178 Nm and 37 kW (30 min)
- Spindle with Ø185 bar capacity: 955 Nm and 37 kW (30 min)
- Without sub-spindle option
- 12-position turret
- 6,000 rpm turret
- Driven tool 58.1 Nm and 7.5 kW (25 min)
- Gantry Loader not available on European or American markets
-
CMZ TD
Single turret CNC lathe - High precision CNC lathe and prismatic guides
- More bar capacity options: Ø52, Ø66, Ø82, Ø95, Ø127, Ø180 and Ø192
- X travel = 380 mm
- Z travel up to 3200 mm
- Fast feeds (m/min): X=30, Y=15, Z=30
- Spindle with integrated motor
- Equivalent spindle 1,500 Nm and 55 kW (max)
- Equivalent spindle 3,684 Nm and 59.8 kW (max)
- With sub-spindle option: 366 Nm / 22 kW (max)
- 12- or 16-position turret
- 12,000 rpm turret
- Driven tool 105 Nm / 13 kW (max)
- 3-axis Gantry Loader max weight 100kg
OKUMA LB4000 EX II VS. CMZ TD
DO YOU WANT TO ACCESS THE FULL TECHNICAL DETAILS?
LONG BED CNC LATHES
COMPARE OKUMA LB4000 EX II WITH CMZ TD
DISCOVER THE MAIN DIFFERENCES BETWEEN THESE LONG BED CNC LATHES
The CMZ TD and the LB4000 EX II are CNC lathes in the same segment, but analysis of their features shows significant differences.
The TD has 4 sizes of Z travel: 800, 1350, 2200, 3200 mm. Whereas the LB4000 EXII has a smaller range, with a maximum reach of 2,240 mm
The CMZ TD has higher torque and power in all spindle ranges compared to the LB4000 EXII. The maximum torque available in the TD-55 model is 3,684 Nm (max) whereas the Ø112 spindle centre line on the LB4000 EXII reaches 1,178 Nm (30 min)
The CMZ TD turret has more features than the LB4000 EX II turret. It can have 12 or 16 positions and is designed with an integrated motor which reaches 12,000 rpm continuous power. The LB4000 EX II turret reaches a maximum speed of 6,000 rpm.
Another advantage of the CMZ TD is automation, because it can be acquired from any market with a Gantry Loader with a capacity of up to 2 x 50 kg work pieces.
