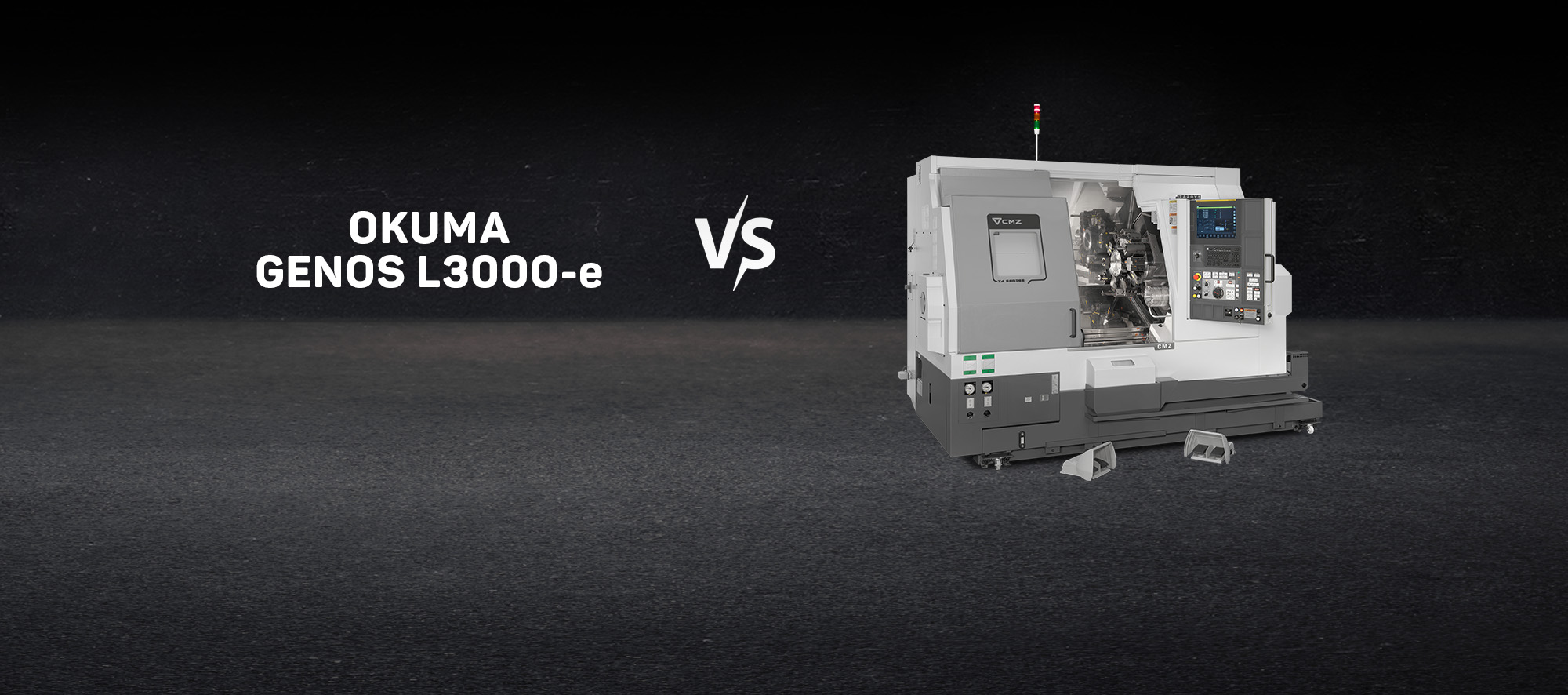

OKUMA GENOS L3000-e VS. CMZ TA
TECHNICAL SPECIFICATION COMPARISON
-
GENOS L3000-e
Single turret CNC lathe - Flat bed lathe
- Bar capacity Ø80
- Maximum turning Ø= 390 mm
- X travel = 235 mm
- Y travel = +50 /-50 mm
- Built-in spindle 412 Nm / 22 kW (20 min)
- 12-position turret
- Belt-driven turret 6,000 rpm,
- Motorised turret 31 Nm/ 5.5 kW (2 min)
- Max. Tailstock force = 6.5 kN
- Gantry Loader not available on European or American markets
-
CMZ TA
Single turret CNC lathe - Slant bed lathe
- Multiple bar capacity options: Ø52, Ø66 or Ø82
- Maximum turning Ø= 450 mm
- X travel = 310 mm
- Y travel = +70 /-50 mm
- Built-in spindle 1020 Nm/ 42 kW (max)
- 12- or 15-position turret
- Turret with built-in motor 12,000 rpm
- Motorised turret 75 Nm / 11.3 kW (max)
- Max. Tailstock force = 13.5 kN
- 3-Axis Gantry Loader max weight 20 kg
OKUMA GENOS L3000-e VS. CMZ TA
DO YOU WANT TO ACCESS THE FULL TECHNICAL DETAILS?
HIGH PERFORMANCE CNC MACHINE FOR SALE WITH PRISMATIC BED
COMPARE OKUMA GENOS L3000-e WITH CMZ TA
DISCOVER THE MAIN DIFFERENCES BETWEEN THESE LATHES
The CMZ TA and the Genos L3000-e are CNC lathes in the same segment, but with significant differences in terms of features and design.
The CMZ TA is a slant bed CNC lathe which minimises diameter precision errors, whereas the Genos L3000-e is a flat bed lathe.
The CMZ TA-30 has a more powerful spindle, with a maximum torque and power output of 1020 Nm and 42 kW, whereas the GeNOS L3000-e reaches 412 Nm and 22 Kw in S2 (20 min).
The CMZ TA turret can have 12 or 15 positions and is designed with an integrated motor which reaches 12,000 rpm continuous power. The Genos L3000-e reaches a maximum of 6,000 rpm. In addition, the CMZ TA has a high milling capacity reaching 75 Nm and 11.3 kW.
As regards automation, the CMZ TA can be acquired on any market with a Gantry loader and work stocker for flanges or axles.
