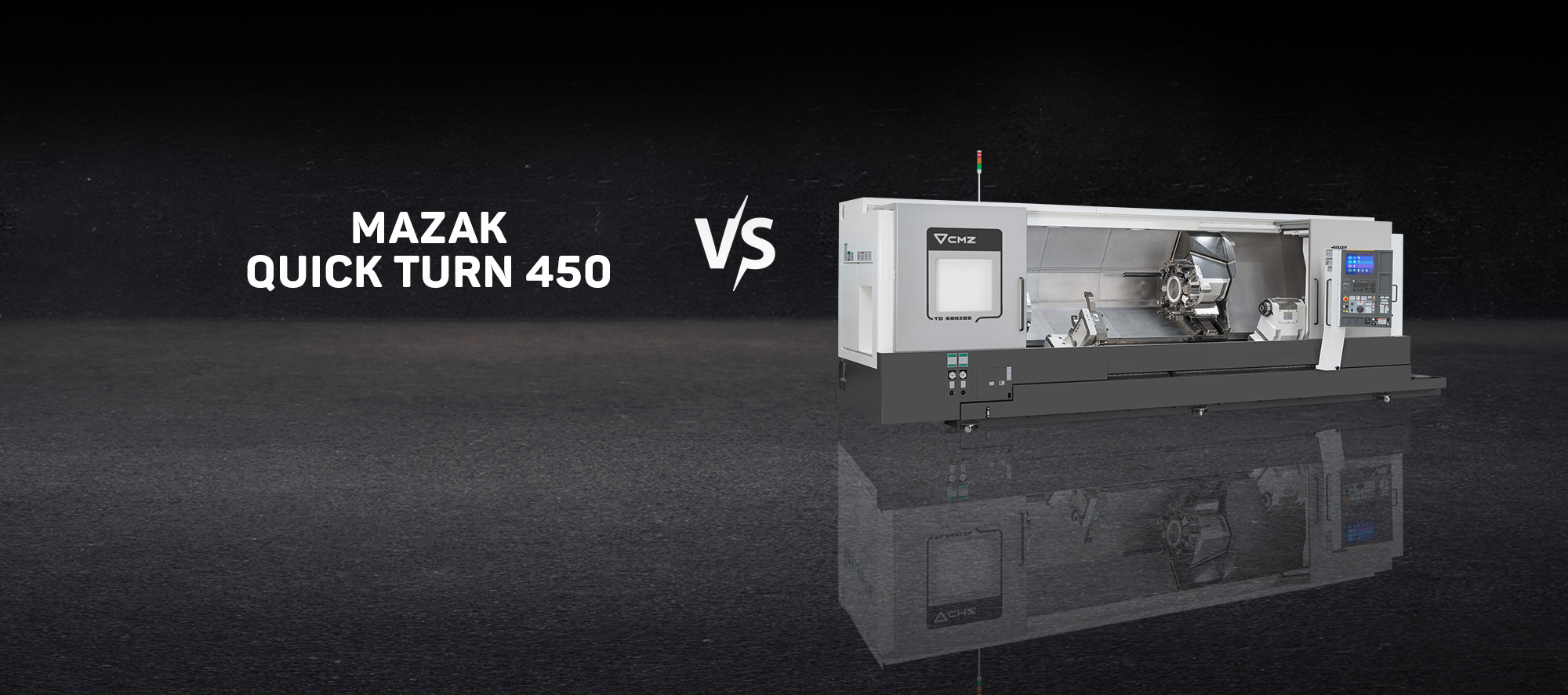

MAZAK QUICK TURN 450 VS. CMZ TD
TECHNICAL SPECIFICATION COMPARISON
-
QUICK TURN 450
CNC single turret, flat bed lathe with 183 mm bar capacity - Linear guides
- Built-in motor in the spindle
- Built-in motor in the driven tool
- Maximum turning diameter = 580 mm
- X travel = 340 mm
- Y travel= 203 mm
- Z travel= 1070 / 2125 / 3175 mm
- Spindle - 2386 Nm and 37 kW
- Turret - 4000 rpm, 7.4 kW, 54 Nm (Opt.)
- Turret - 4000 rpm, 7.4 kW, 69 Nm (Opt.)
- Gantry loader not available
-
CMZ TD 55
CNC single turret, slant bed lathe with 180 mm bar capacity - Prismatic guides
- Built-in motor in the spindle
- Built-in motor in the driven tool
- Maximum turning diameter = 550 mm
- X travel = 380 mm
- Y travel= 140 mm +80 /-60 mm
- Z travel= 800 / 1350 / 2200 / 3200
- Spindle - 3648 Nm and 59.8 kW
- Turret - 12,000 rpm, 13 kW, 105 Nm
- Turret - 12,000 rpm, 13 kW, 105 Nm
- Gantry Loader with 50 kg capacity
MAZAK QUICK TURN 450 VS. CMZ TD
DO YOU WANT TO ACCESS THE FULL TECHNICAL DETAILS?
LONG BED CNC LATHES
COMPARE MAZAK QUICK TURN 450 WITH CMZ TD
DISCOVER THE MAIN DIFFERENCES BETWEEN THESE LONG BED CNC LATHES
The Mazak QUICK TURN 450 and the CMZ TD 55 are lathes intended for the same type of part, they can be described as competitors. Nevertheless, analysis of their features shows there are technical differences.
The Mazak QUICK TURN 450 is a flat bed lathe. There is a 60 degree angle between the spindle and the X axis. In contrast, the CMZ TD 55 is a slant bed lathe with a 90 degree angle between the spindle and the X axis.
The carriages of the Mazak QUICK TURN 450 rest on linear roller guides. In the CMZ TD 55, the carriages rest on prismatic guides with metal on metal contact. In the guides, a ground surface is permanently in contact with a hand scraped surface.
The spindle and the sub-spindle in the CMZ TD 45 have more torque than the Mazak QUICK TURN 450. In addition the CMZ TD 55 has higher specifications in the turret: it reaches 12,000 rpm, 13 kW and 105 Nm.
As regards automation, with the CMZ TD 55 it is possible to automate part loading and unloading with the gantry loader. The Mazak QUICK TURN 450 does not have that option.
