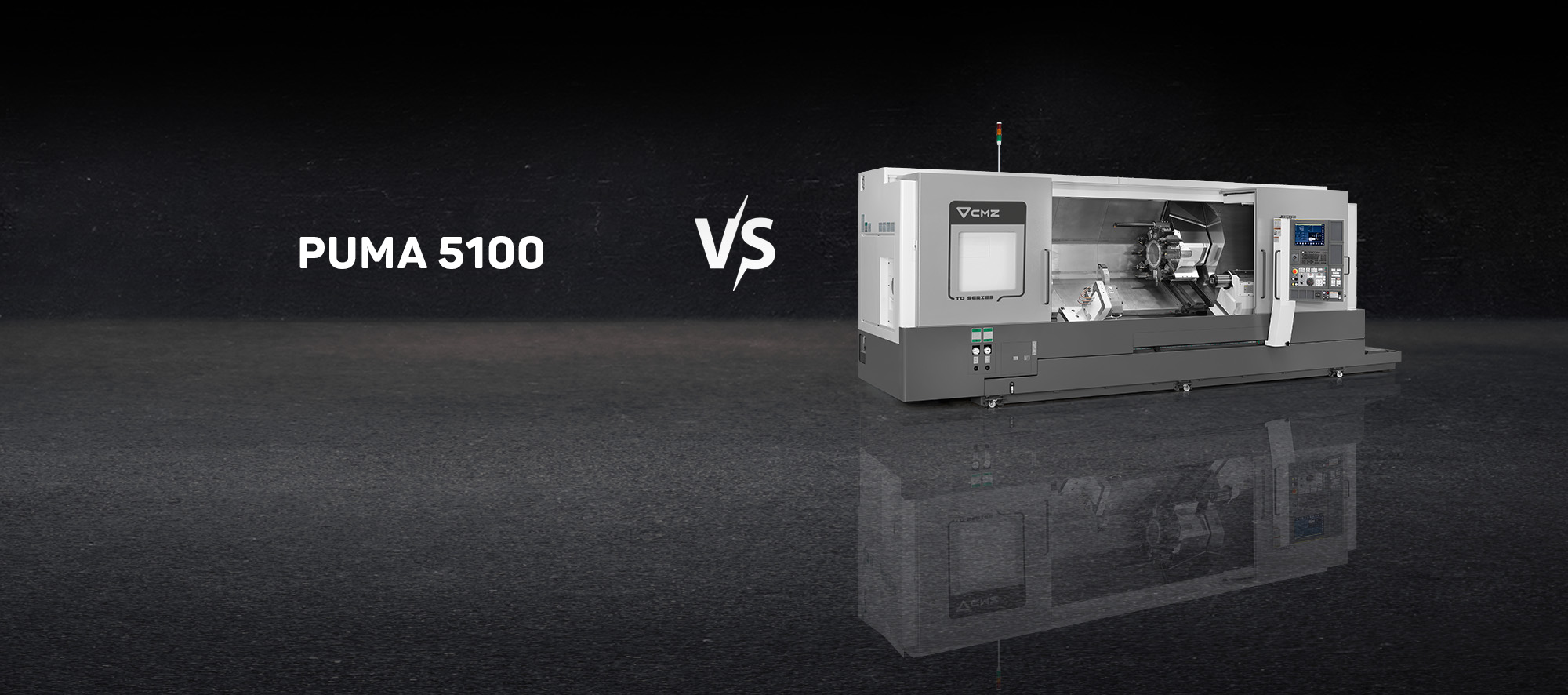

DOOSAN PUMA 5100 VS. CMZ TD
TECHNICAL SPECIFICATION COMPARISON
-
Puma 5100
CNC single turret slant bed lathe - Prismatic guides with turcite
- Built-in motor in the spindle
- Belt driven tool
- Maximum turning diameter = 650 mm
- X travel = 362 mm
- Y travel= 150 mm
- Z travel= 1,105 / 2,155 / 3,180 mm
- Spindle - 3,268 Nm and 45 kW
- Turret - 4,000 rpm and 23 kW
- Follower Rest function not available
- Maximum centring range 45-310 mm
- Tailstock shank Ø120 mm
-
CMZ TD 45
CNC single turret slant bed lathe - Prismatic guides with metal on metal contact
- Built-in motor in the spindle
- Built-in motor for the live tool drive
- Maximum turning diameter = 550 mm
- X travel = 380 mm
- Y travel= 140 mm
- Z travel= 800 / 1,350 / 2,200 / 3,200
- Spindle - 3,648 Nm and 59.8 kW
- Turret - 12,000 rpm and 13 Kw
- Follower Rest Function
- Maximum centring range 75-430 mm
- Tailstock shank Ø150 mm
DOOSAN PUMA 5100 VS. CMZ TD
DO YOU WANT TO ACCESS THE FULL TECHNICAL DETAILS?
LONG BED CNC LATHES
COMPARE DOOSAN PUMA 5100 WITH CMZ TD
DISCOVER THE MAIN DIFFERENCES BETWEEN THESE LONG BED CNC LATHES
The CMZ TD 45 and the Puma 5100 are machines of equivalent size but with numerous differences in structure and features.
The prismatic guides on the CMZ TD 45 have metal on metal contact. Specifically, a ground surface is permanently in contact with a hand scraped surface. In contrast, on the Puma 5100 contact is between metal and turcite.
The CMZ TD 45 spindle is more powerful than the Puma 5100 spindle, in terms of power and torque rating. It also has greater milling capacity, because the driven tool provides more power and speed.
As regards the steady rest, the CMZ TD 45 has a servo steady rest and follower rest functionality. In contrast, the Puma 5100 does not permit synchronisation of the movement of the steady rest and the turret.
